Key Concepts

• A Custom Entity is an Entity defined in your game code that implements game-specific functionality. Like SDK-provided Entities, custom Entities can contain state, optionally persist it in the database, and communicate with other Entities.
• An Actor is the runtime host for an Entity on the server. When you create a custom Entity, you also define an Actor class (typically extending PersistedEntityActor) that manages its lifecycle, state persistence, and message handling.

Overview

We previously went over how Metaplay's server architecture and programming model works, and we added some functionality directly to the existing PlayerActor. Now, we'll go over more complex cases where want to create entirely new Entities that can communicate with eachother and with the client.

With this in mind, we'll create a basic example of a service running on the server that interacts with the players and tells them whether they were within the first ten users to log in that day.

Implementing this system involves adding a custom Entity and tracking it's state persistently, as well as communicating with the player Actor, the player model's server-side counterpart. Here's an overview of the steps ahead:

1. Add the new Entity in the SDK's Entity registry.
2. Create the Entity class with the logic for the Entity to run.
3. Define how the Entity should be stored in the database.
4. Create a DailyTen Actor for the Entity to run on.
5. Define the Entity configuration.
6. Integrate the PlayerActor

Finally, we can test the project and see that everything works correctly.

1. Declare the new EntityKind

Metaplay has an Entity registry that tells the SDK what kind of Entites to spawn and look for. To add a custom Entity, we must appropriately declare and configure the necessary components. We'll start by defining an EntityKind for the new Entity. EntityKind is a unique name given for each new Entity behavior. We'll call the new entity DailyTenTracker and choose a new unique value. We'll add this new EntityKind in the EntityKindGame, a registry of game-specific EntityKind values.

EntityKindGame.cs

// Declare a registry for game-specific entities.
// Use range [100, 300) for the game-specific EntityKind values.
[EntityKindRegistry(100, 300)]
public static class EntityKindGame
{
    // Define the new DailyTenTracker EntityKind with value 100.
    public static readonly EntityKind DailyTenTracker = EntityKind.FromValue(100);
}

2. Define the Data Model for the Entity

Next, we'll define the data model for the new Entity. To know whether a player is within the first ten to log in for that day, we need to store a set of up to 10 players and the timestamps for when they are valid.

DailyTenModel.cs

namespace Game.Server;

[MetaSerializable]
[SupportedSchemaVersions(1, 1)]
public class DailyTenModel : ISchemaMigratable
{
    // The set of up-to 10 first players.
    [MetaMember(1)] public OrderedSet<EntityId> DailyTen = new OrderedSet<EntityId>();
    // The timestamp for when the first player was added into DailyTen.
    [MetaMember(2)] public MetaTime LastClearedAt;

    /// <summary>
    /// Adds player to the todays first 10 players if there is room.
    /// Returns true if player is in today's first 10 players set
    /// </summary>
    public bool TryAddPlayer(MetaTime now, EntityId playerId)
    {
        // If day has changed, reset list
        if (LastClearedAt.ToDateTime().Date != now.ToDateTime().Date)
        {
            DailyTen.Clear();
            LastClearedAt = now;
        }
        // Add to the set if it's not full. Note that the player may already be in the set.
        if (DailyTen.Count < 10)
            DailyTen.Add(playerId);
        return DailyTen.Contains(playerId);
    }
}

3. Declare the Entity's Persisted Schema

After defining the data model, we must determine how to save it on the persisted storage. For this, we'll define a PersistedDailyTen persisted model for the data. This model defines an SQL table schema, such that we don't need to take care of the details other than to choose a convenient Table attribute:

PersistedDailyTen.cs

namespace Game.Server;

[Table("DailyTens")]
public class PersistedDailyTen : IPersistedEntity
{
    [Key]
    [PartitionKey]
    [Required]
    [MaxLength(64)]
    [Column(TypeName = "varchar(64)")]
    public string   EntityId        { get; set; }

    [Required]
    [Column(TypeName = "DateTime")]
    public DateTime PersistedAt     { get; set; }

    [Required]
    public byte[]   Payload         { get; set; }

    [Required]
    public int      SchemaVersion   { get; set; }

    [Required]
    public bool     IsFinal         { get; set; }
}

Next, we can bake the class into an SQL schema by running the following command while in the project's Backend/Server/ folder:

dotnet ef migrations add AddPersistedDailyTen

The AddPersistedDailyTen is a human-friendly name for the change. After running the migration generator, remember to commit the generated and updated files:

Migrations/GameDbContextModelSnapshot.cs
Migrations/<datetime>_AddPersistedDailyTen.cs
Migrations/<datetime>_AddPersistedDailyTen.Designer.cs

4. Implement the Entity Actor

Now that the data models are set, we need to define the Entity actor class for the declared EntityKind. At this point, it merely maintains an instance of the data model.

DailyTenActor.cs

namespace Game.Server;

public class DailyTenActor : PersistedEntityActor<PersistedDailyTen, DailyTenModel>
{
    // Here we declare the lifetime characteristics of the actor: we set `SnapshotInterval` to one minute
    // to make the actor save its state automatically every minute.
    protected override TimeSpan SnapshotInterval => TimeSpan.FromMinutes(1);

    // We set `ShutdownPolicy` to never automatically shut down. While having the actor shut down is harmless, (as it
    // would automatically wake up on demand) it's not necessary as there will be at most one instance of this type
    // *Entity* in server memory at any given time. By never sleeping, it helps login latency as the entity is read from
    // database only once.
    protected override AutoShutdownPolicy ShutdownPolicy => AutoShutdownPolicy.ShutdownNever();

    DailyTenModel _state;

    // Fetching the persisted data from the base class.
    protected override async Task Initialize()
    {
        PersistedDailyTen persisted = await MetaDatabase.Get().TryGetAsync<PersistedDailyTen>(_entityId.ToString());
        await InitializePersisted(persisted);
    }

    // Creates a new model upon being initialized for the first time.
    protected override Task<DailyTenModel> InitializeNew()
    {
        return Task.FromResult(new DailyTenModel());
    }

    // Saving current state to persistent storage upon being requested.
    protected override async Task PersistStateImpl(bool isInitial, bool isFinal)
    {
        byte[] serialized = SerializeToPersistedPayload(_state, resolver: null, logicVersion: null);
        PersistedDailyTen persisted = new PersistedDailyTen
        {
            EntityId        = _entityId.ToString(),
            PersistedAt     = DateTime.UtcNow,
            Payload         = serialized,
            SchemaVersion   = _entityConfig.CurrentSchemaVersion,
            IsFinal         = isFinal,
        };
        if (isInitial)
            await MetaDatabase.Get().InsertAsync(persisted).ConfigureAwait(false);
        else
            await MetaDatabase.Get().UpdateAsync(persisted).ConfigureAwait(false);
    }

    // Decodes the saved model being retrieved from persisted state.
    protected override Task<DailyTenModel> RestoreFromPersisted(PersistedDailyTen persisted)
    {
        // Decode from Payload field
        DailyTenModel state = DeserializePersistedPayload<DailyTenModel>(persisted.Payload, resolver: null, logicVersion: null);
        return Task.FromResult(state);
    }

    // Finally, we load the retrieved or created state into the actor.
    protected override Task PostLoad(DailyTenModel payload, DateTime persistedAt, TimeSpan elapsedTime)
    {
        // Load actor state from persisted.
        _state = payload;
        return Task.CompletedTask;
    }
}

5. Define the Entity Configuration

While Model defines the data model, Persisted- the persisted data model, and actor the runtime behavior, we have one final configuration parameter left: the Entity configuration. Entity configuration defines the runtime environment in which the Entity's runtime representation, the Actor, runs. Specifically, it chooses the Actor class for the EntityKind. For other fields, we'll declare the default values:

DailyTenEntityConfig.cs

namespace Game.Server;

[EntityConfig]
class DailyTenEntityConfig : PersistedEntityConfig
{
    // For the EntityKind DailyTenTracker..
    public override EntityKind        EntityKind           => EntityKindGame.DailyTenTracker;
    // ..use the actor class DailyTenActor.
    public override Type              EntityActorType      => typeof(DailyTenActor);

    // Initialize as part of the Workloads group, after all Metaplay core services are available.
    // EntityShardGroups.Workloads is the default value so this is only needed when the entity needs
    // to be initialized earlier.
    public override EntityShardGroup  EntityShardGroup     => EntityShardGroup.Workloads;

    // Evenly distribute the given entities on all NodeSets in the cluster that are configured
    // to contain the DailyTenTracker entities.
    public override IShardingStrategy ShardingStrategy     => ShardingStrategies.CreateStaticSharded();

    // By default, we want to place this entity on the `service` NodeSet in the cluster. This NodeSet
    // has a single node that is responsible for running various singleton services.
    public override NodeSetPlacement  NodeSetPlacement     => NodeSetPlacement.Service;

    // Give the entities 10 seconds time to shutdown when the server is terminated.
    public override TimeSpan          ShardShutdownTimeout => TimeSpan.FromSeconds(10);
}

• The EntityShardGroup specifies the order in which the Entities in question are initialized relative to the other Entities. In most cases, EntityShardGroup.Workloads is the correct group choice and it is the default value.
• The ShardingStrategy specifies how the Entities of a given type are placed across the cluster when multiple nodes are handling the same kind of Entity. ShardingStragies.CreateStaticSharded() is used for Entities that should be sharded across a static set of nodes. Use this for Entities that should scale across multiple nodes in the cluster. It is used by Entities such as players, guilds, and guild divisions that need to be scalable.
• Lastly, the NodeSetPlacement specifies the default nodes in the cluster on which the entities should be placed. See Configuring Cluster Topology to better understand how clustering works in Metaplay as well as how to override these placements for non-standard cluster configurations. NodeSetPlacement.Service should be used for singleton entities where only one copy of the entity exists and other service-style entities that don't need to scale across the cluster.

For more information, check out the Sharding Strategy section of the Introduction to Entities and Actors page.

6. Integrate the PlayerActor

We have now implemented an Entity that can execute on the backend, run game logic, and save state in persisted storage. However, it does not affect the players in any way as it lacks a way to communicate with them. For that to change, each player that logs in will need to know whether they were part of the first ten users to log in that day. We'll implement this with a single EntityAsk call. We start by declaring the messages:

MessageCodes.cs

namespace Game.Server;

public static class MessageCodes
{
    public const int DailyTenPlayerLoginRequest = 10_001;
    public const int DailyTenPlayerLoginResponse = 10_002;
}

DailyTenInternalMessages.cs

namespace Game.Server;

[MetaMessage(MessageCodes.DailyTenPlayerLoginRequest, MessageDirection.ServerInternal)]
class DailyTenPlayerLoginRequest : MetaMessage
{
    // no arguments yet
}

[MetaMessage(MessageCodes.DailyTenPlayerLoginResponse, MessageDirection.ServerInternal)]
class DailyTenPlayerLoginResponse : MetaMessage
{
    public bool IsInDailyTen { get; private set; }

    DailyTenPlayerLoginResponse() { }
    public DailyTenPlayerLoginResponse(bool isInDailyTen)
    {
        IsInDailyTen = isInDailyTen;
    }
}

In the first step, we declared a message number registry. This acts as a common location to place the constant integers and avoid littering the implementation with hard-to-read numbers. We then declare a message pair for the request and response parts of the EntityAsk. After that, we'll add a message handler to the DailyTenActor to process the request:

DailyTenActor.cs

public class DailyTenActor
{
    ...
    [EntityAskHandler]
    DailyTenPlayerLoginResponse HandleDailyTenPlayerLoginRequest(EntityId sender, DailyTenPlayerLoginRequest request)
    {
        bool isInDailyTen = _state.TryAddPlayer(now: MetaTime.Now, playerId: sender);
        return new DailyTenPlayerLoginResponse(isInDailyTen);
    }
}

Finally, we'll use this implemented request in the player actor's login sequence:

PlayerActor.cs

public class PlayerActor
{
    ...
    protected override async Task OnSessionStartAsync(PlayerSessionParams sessionParams, bool isFirstLogin)
    {
        EntityId targetEntity = EntityId.Create(EntityKindGame.DailyTenTracker, value: 0);
        DailyTenPlayerLoginRequest request = new DailyTenPlayerLoginRequest();
        DailyTenPlayerLoginResponse response = await EntityAskAsync<DailyTenPlayerLoginResponse>(targetEntity, request);
        Model.IsInDailyTen = response.IsInDailyTen;
    }
}

Notably, the targetEntity here is just a DailyTenTracker entity. We have arbitrarily chosen the ID number 0 but could have chosen any different constant value. In different scenarios, we could also add multiple independent tracker Entities, each with a different ID number.

To communicate the result of the operation to the client, we'll update the Model.IsInDailyTen member of the player model:

PlayerModel.cs

public class PlayerModel
{
    ...
    [MetaMember(201), Transient] public bool IsInDailyTen { get; set; } = false;
}

In this implementation IsInDailyTen is refreshed for this implementation in every login. As such, we don't need to store it in persistent storage, and it has been marked as Transient. This has the benefit that IsInDailyTen is automatically reset whenever the player is no longer online and the player entity has been persisted into the database.

Test

Now, any player within the first 10 to log in on a given day should have their corresponding player model's IsInDailyTen set to true. While running the project, you can check that everything works by printing this value to the console or by inspecting the PlayerModel.IsInDailyTen with Model Inspector. Remember to have the server running!

Wrapping Up

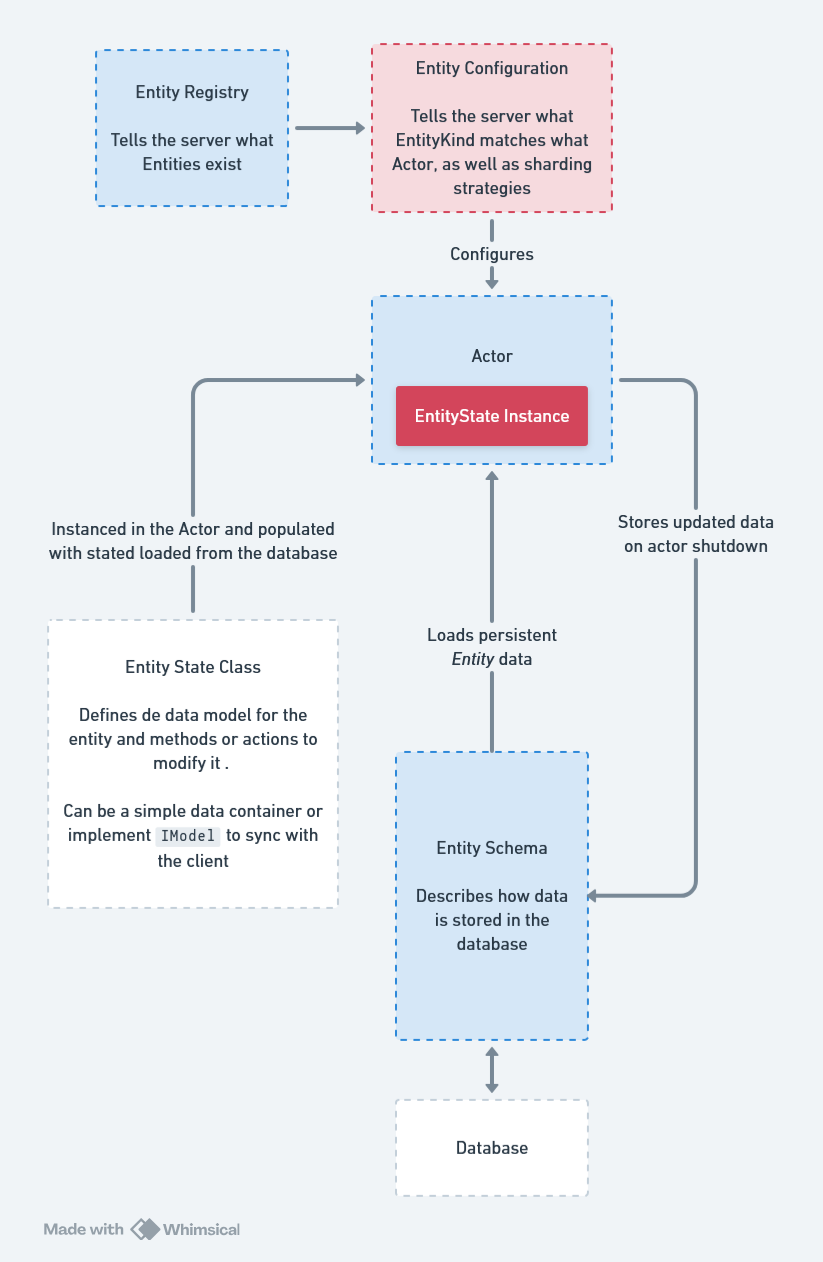

Here's a quick cheat sheet of how the server components work:

Further Reading

• Entity-to-Entity Communication - Custom Entities are only useful if they communicate with other Entities. Descriptions of the various ways of Entity communication can be found in Deep Dive: Entity-to-Entity Communication.
• Entity Schema Versions & Migrations - For your custom Entities to store state persistently in an extendable way, you will need to use versioning and schema migrations. These concepts are described in more detail on Entity Schema Versions and Migrations.
